Freedom 160 CPAP Battery Quick Setup:
Watch the video below for setup and best practices to get the most out of your Freedom 160 CPAP Battery.
Be sure to follow Steps 1, 2, and 3 for optimal performance.Bonus: Read how to register your battery for an extra 6 months of warranty FREEContents:
— 3 Step Setup
— Extended Warranty
— Flight Letter
— More Support
— Run Times
Freedom 160 CPAP Battery – 3 Step Setup
Step 1: Fully Charge the Freedom 160Plug into a wall outlet using the included charger. Full charge takes 4–5 hours.
The lights will turn OFF when fully charged.Video:
Charging Your Freedom 160 CPAP Battery
Step 2: Set Your CPAP to Maximize Run TimeTurn off heated humidifier and heated tubing:ResMed AirSense 11
My Options → Climate Control: Manual → Humidity Level: Off → Tube Temp: OffResMed AirSense 10
My Options → Climate Control: Manual → Humidity Level: Off → Tube Temp: OffPhilips DreamStation 2
Settings → Humidification: Off (0) → Heated Tube: OffPhilips DreamStation 1
My Setup → Humidifier: Off → Tube Temp: OffResMed AirMini
No action needed (no heated features)Videos:
ResMed AirSense 11
ResMed AirSense 10
Philips DreamStation 2
Philips DreamStation 1

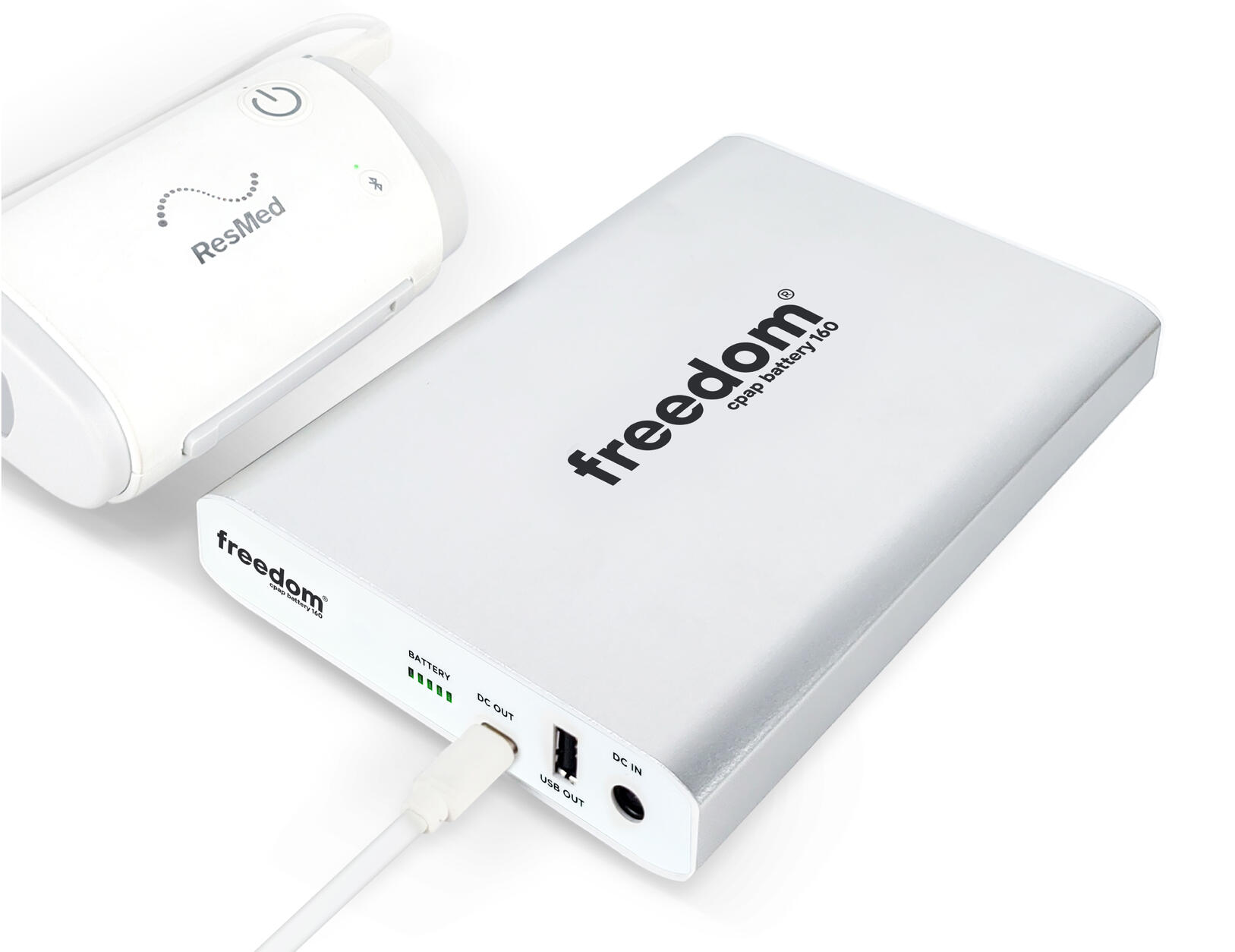

Step 3: Connect Your CPAP to the Freedom 160ResMed AirSense 11
Use 24V yellow-tip cable → plug yellow end into back of device → USB-C into DC Out on Freedom 160ResMed AirSense 10
Use 24V barrel cable → plug into back of device → USB-C into DC Out on Freedom 160ResMed AirMini
Use 24V yellow-tip cable → plug into AirMini power port → USB-C into DC Out on Freedom 160Philips DreamStation 2
Use 12V L-shaped cable → plug under device → USB-C into DC Out on Freedom 160Philips DreamStation 1
Use 12V L-shaped cable → plug into side power port → USB-C into DC Out on Freedom 160Videos:
ResMed AirSense 11
ResMed AirSense 10
ResMed AirMini
Philips DreamStation 2
Philips DreamStation 1You're ready for a full night of sleep—no further steps needed
Extended Warranty:
To activate your extended warranty, please email us the following to: info@cpaphero.comSubject Line: Extended Warranty
| Full Name: |
| Phone Number: |
| Battery Serial Number: |
| Order Number: |
| Date of Purchase: |
| Place of Purchase: (ex. amazon, distributor, etc.) |

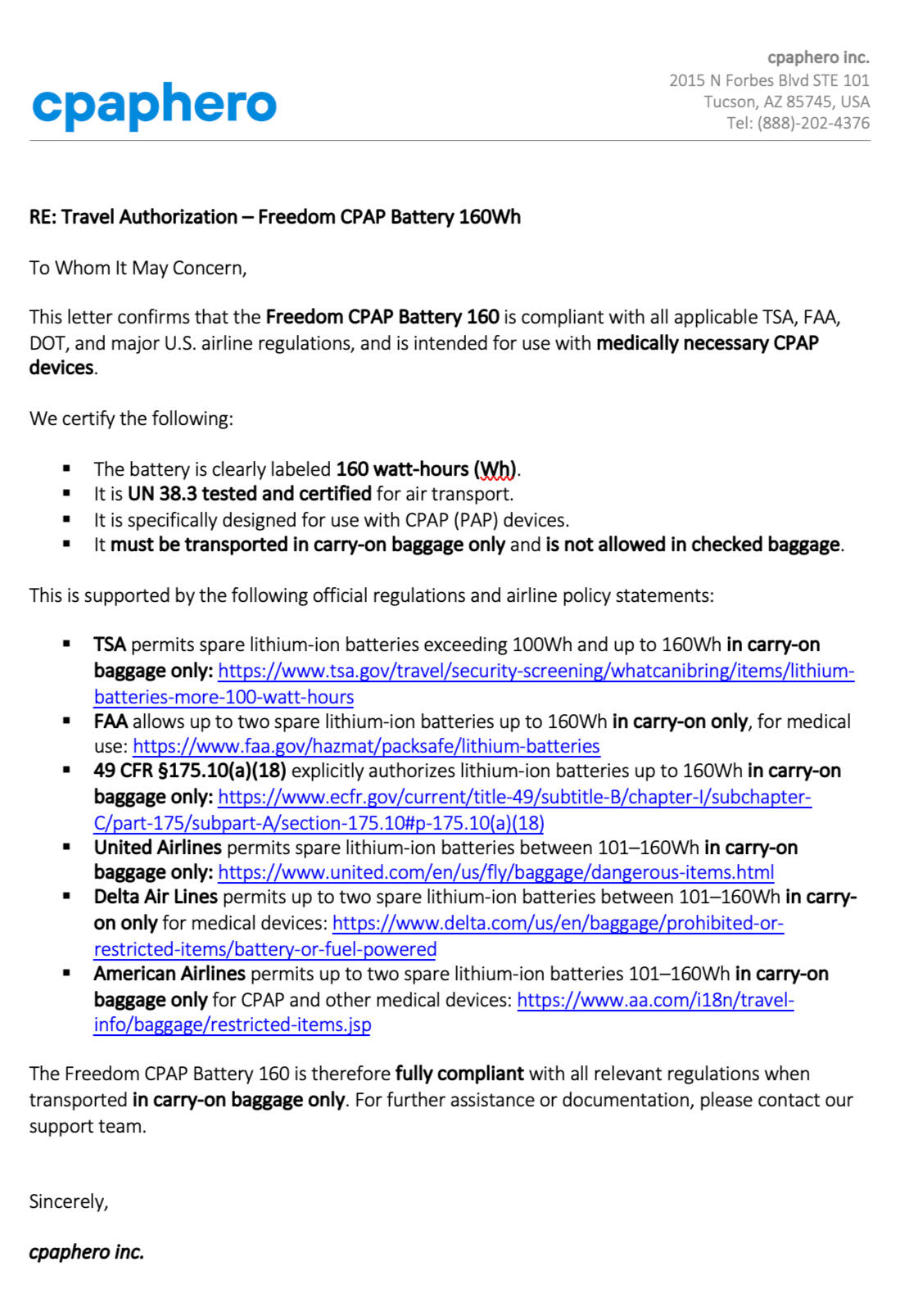

Flight Letter
More Support:
If there is anything we can do to help you, do not hesitate to contact us:1-888-202-4376
info@cpaphero.com

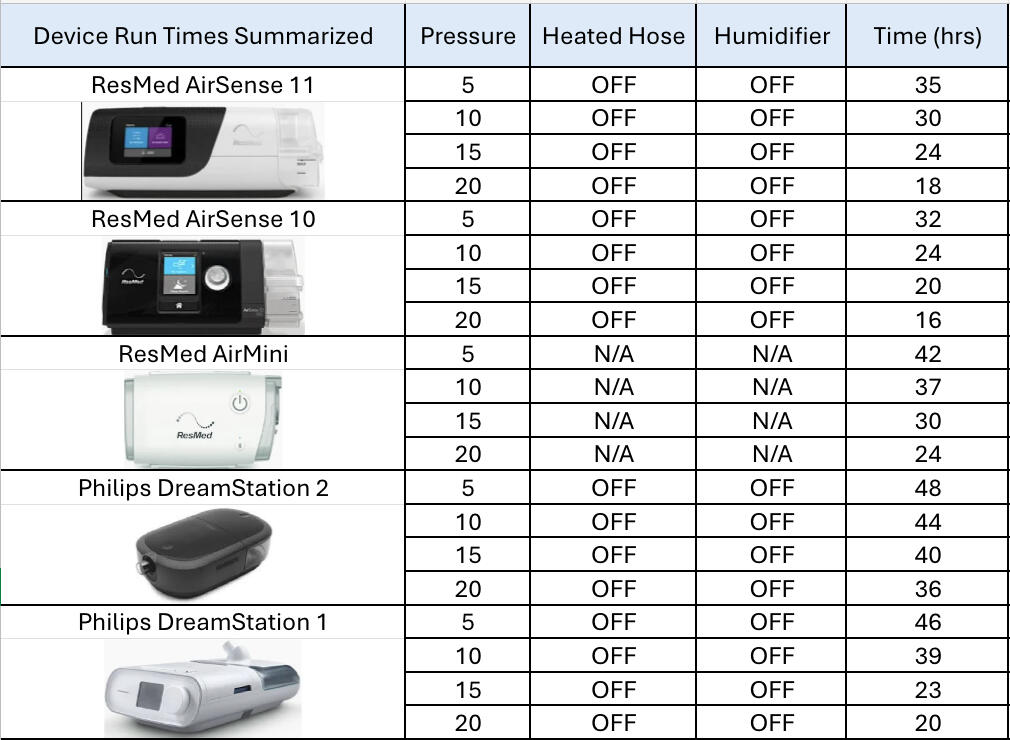

Run Times:
*Tests are completed on a fixed pressure and consistent 3.5mm diameter tube opening to simulate normal mask leak.
